Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers

    Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers
    • Buy cheap Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam from wholesalers

    Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    Ask Lasest Price
    Brand Name : Dingbo
    Model Number : DBKJ
    Certification : CE ISO
    Delivery Time : 70-80 working days
    Payment Terms : TT, L/C
    Price : USD 63600-72800per set
    Supply Ability : 2 sets per month
    • Product Details
    • Company Profile

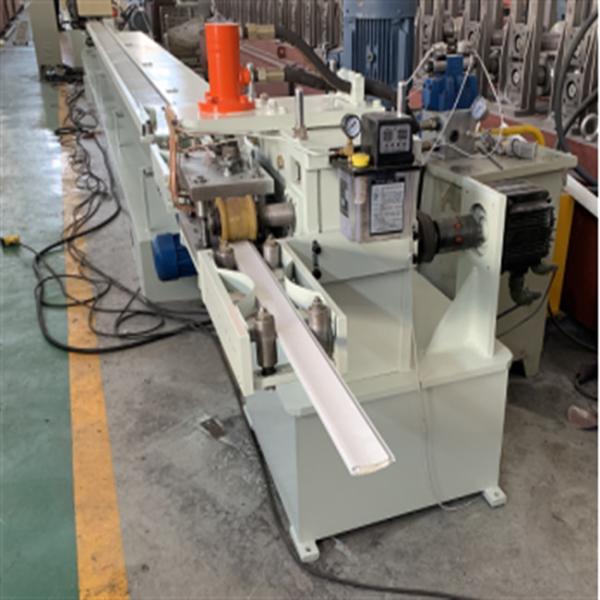

    Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    45mm And 55mm PU Foam Shutter Door Roll Forming Machine

    With High Speed 0-30m/Min

    Product Description:

    A PU (Polyurethane) foam shutter door roll forming machine is a specialized piece of equipment designed to manufacture PU foam-filled shutter doors through a roll forming process. These doors are commonly used in industrial, commercial, and residential applications for security, insulation, and noise reduction. The roll forming machine produces the shutter door components, and the addition of PU foam enhances insulation properties.

    Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    Features:

    • Insulation: The addition of polyurethane foam enhances the thermal and sound insulation properties of the shutter door.
    • Security: PU foam-filled shutter doors provide a secure barrier against unauthorized access.
    • Customization: The machine allows for customization of shutter door profiles and sizes.Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam
    • Product Parameters

      ItemParameters
      Coil thickness (mm)0.28-0.35mm
      Speed (m/min)0-30m/min
      Transmission typeGearbox
      Roll stations37
      Main power (Kw)7.5
      Main shaft (mm)Ø 100
      Cutter materialCr12MOV
      Cutting accuracy± 1.5mm
      Control systemPLC

      Main Components

      No.NameQty
      1Manual uncoiler1
      2Hydraulic Punching1
      3Main Roll Forming Machine1
      4PLC Control Box1
      5Foam machine1
      6Output Table
    • Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    Applications:

    Polyurethane (PU) foam-filled shutter doors find diverse applications in industrial, commercial, and residential settings due to their versatile features such as security, insulation, and durability. Here are some common applications of PU foam shutter doors:

    1. Industrial Warehouses and Factories:

      PU foam shutter doors are commonly used as exterior closures for warehouses and factories. They provide security for valuable goods, and the polyurethane foam enhances insulation, helping to regulate the temperature inside the facility.
    2. Commercial Buildings and Storefronts:

      In commercial buildings, especially those with storefronts, PU foam shutter doors serve as secure and visually appealing closures. They can be customized to match the aesthetics of the building and provide insulation for climate control.
    3. Residential Garages:

      PU foam-filled shutter doors are popular choices for residential garage doors. They offer security for vehicles and storage areas, and the insulation properties help maintain a comfortable temperature inside the garage.
    4. Cold Storage Facilities:

      PU foam shutter doors are suitable for cold storage facilities, including walk-in freezers and refrigerated warehouses. The insulation provided by the polyurethane foam helps maintain the desired temperature levels.
    5. Food Processing and Distribution Centers:

      Shutter doors with PU foam insulation are used in facilities involved in food processing and distribution. They help regulate temperature, ensuring that perishable goods are stored in optimal conditions.
    6. Commercial Kitchens and Restaurants:

      In commercial kitchens and restaurants, PU foam shutter doors may be used for access to storage areas or as closures for service entrances. The insulation helps in maintaining a controlled environment.
    7. Automotive Service Centers:

      PU foam-filled shutter doors are commonly used in automotive service centers and repair shops. They provide security for vehicles and equipment and contribute to maintaining a comfortable working environment.
    8. Agricultural Facilities:

      In agricultural settings, such as barns and storage sheds, PU foam shutter doors provide secure closures. The insulation properties are beneficial for protecting stored equipment and supplies from extreme weather conditions.
    9. Residential Buildings:

      PU foam shutter doors may be used in residential settings for applications such as patio closures, balconies, or as garage doors. They offer security, insulation, and customizable design options.
    10. Airports and Loading Docks:

      PU foam shutter doors are employed in airports and loading docks for secure closures of storage areas and cargo bays. The insulation helps protect goods from temperature variations.
    11. Clean Rooms and Laboratories:

      In environments requiring cleanliness and controlled conditions, such as clean rooms and laboratories, PU foam shutter doors can be used to create secure and insulated enclosures.
    12. Security Entrances:

      PU foam shutter doors are utilized in facilities where security is a primary concern, such as banks, data centers, and sensitive government installations.
    13. Automatic Shutter Door Roll Forming Machine 45mm And 55mm PU Foam

    FAQ

    1. Q: What's the warranty period? (24hours online)

    12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

    2. Q: Do you have installation and commissioning service?

    A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

    B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

    C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

    (Normally ,It takes about a week to install )

    3. Q: What’s your after-sales service ?

    We provide 24-hour online service for our customers.

    And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

    4. Q: What's your delivery time ?

    Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

    5. Q: You are trading company or factory?

    We are Manufacturer, and we export our machine by ourselves.

    6. Q: Do you provide customized machine?

    Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

    7. Q: How to visit your factory?

    We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

    arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

    Pudong Airport, about 3 hours.

    It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

    It is very convenient.Please let me know if you have booked the tickets

    so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

    By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

    8. Q: How to place order ?

    Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

    9. Q: What certificate do you have ?

    We have CE and ISO certificate.

    10. Q: What are your terms of payment ?

    First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

    11. Q: What can you do if the machine breaks down?

    We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
